VERY IMPORTANT: Issues that the user needs to know when buying and using the front loader:
1) SOFT DRIVE and MECHANICAL SELF LEVELING: All our models have this feature. It works as a shock absorber thanks to high quality hydrulic valves and cylinders used in our front loaders. Products that do not have this feature may end up with broken rims and axles.
2) BACK WEIGHT: Suppose the Tractor itself weighs 4 tonnes + the front loader weight 1 tonne + the load weighs 1 tonne= 6 tonnes in Total. In such case there must me at least 2 tonnes of weight at the back of the tractor. Otherwise the tractor can turn upside down.
3) CLUTCH WORN OUT: If the tractor driver approaches to the load with high gear and speed, and stops suddenly to elevate the load, the clutch wears out much faster than usual.
Only the RX-FL02Y must be delivered mounted on our tractors. All other models can be delivered assembled or separately depending on our customers request.
The models of front loaders that correspond to our tractors:
RX-FL02Y
Front Loader of 79hp Orchard
With the front loader assembled, our 79hp tractor looks like the below photo
RX-FL-3300
Front Loader for 92hp - 110hp Field Tractors
92HP - RX-FL-3500 & RX-FL-3800
110HP - RX-FL-3800
Below photos show that our front loaders are successfully designed for world-famous brands such as Kubota, Deutz-Fahr, and New Holland.
The front loader is painted in the same color as the tractor.
Specially Designed Attachments
FORKLIFT FORK
SQUARE BALE FORK
MULTIFUNCTIONAL BUCKET
BALE HOLDER
SHOVEL FOR MUD, FERTILIZER ETC
BROOM
BALE CUTTER
GRAIN BUCKET

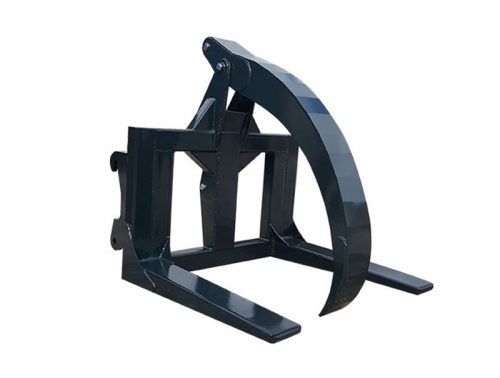

LOG HOLDER

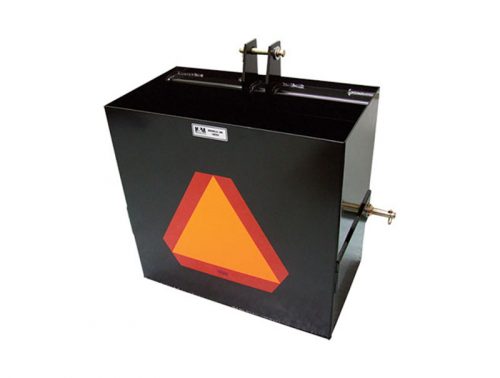

WEIGHT BUCKET
Most Popular Attachments
Work Bucket, Bale Holder, Bale Cutter and Square Bale Fork
Jcb Type Double Sided Work Bucket
Multifunctional Bucket
Forklift Fork
Shovel For Mud, Fertilizer Etc.
This is the real combination of RX-FL-3300 model that we are already offering with our tractor model of RX-TR4.
Log Holder
Backhoe Loader For All Types Of Tractors (Universal)
Neither of our two models of backhoes are mounted on the tractor, so it is not necessary to buy them together with our tractors. That is, for any other brand of tractors sold in its market, it can be adapted and mounted very easily.
Thanks to its robustness, technology and easy assembly, it is now more efficient to work in narrow work places.
Model: RX-BH200
Maximum Diging Depth: 210 cm
Bucket Width (Cm): 20-45 cm
Control System: Joystick
Pressure (Bar): 180
Required Flow Rate (Litro/Min.): 20
Model: RX-BH170
Maximum Diging Depth: 170 cm
Bucket Width (Cm): 30 cm
Control System: Hydraulic Manual Control With Four Arms
Required Flow Rate (Litro/Min.): 40
• Connected to your tractor’s three-point suspension system.
• It receives the hydraulic pressure force directly from the oil jacks of the tractor.
• It requires at least two oil jacks: pressure and discharge.
• The operating performance is directly proportional to the performance of the tractor’s own oil pump.
It has 160 degrees of movement in total, 80 to the degrees left and right.
The Advantages of Products
and Images of Different Uses
Front Loaders:
• It does not make any harm to your tractor.
• It is assembeled inhouse by our talented engineers so that it does not change any technical efficieny test result of your tractor. For all front loaders delivered separately (not mounted on the tractor), we give video conference support for you to assemble it perfectly in your own country.
• With its multifunctional uses in orchards, fields,livestock, poultry, even in narrow streets as construction machinary, it saves time and provides efficiency to your work.
• Dimensions of the tractors facilitates to gain more agility in any workplace.
• Attachements designed specifically for each work type adds value to final users.
• Importers do not lose any space in the container as the arms of the front loaded are lifted up, using the space that is not used anyways.
Backhoe Loader (UNIVERSAL):
• Easy Assembly offers a diversity of selling our backhoe loaders to any brand of tractors.
• Both the “Joystick Control” and the “Hydraulic Manual Control” make all tasks easier.
• With its multifunctional uses in orchards, open fields, livestock, poultry, even on narrow streets as construction machinery,
it saves time and provides efficiency to your work.
• Tractor dimensions make it easier to gain more agility in any workplace.
• High performance on sloping terrain thanks to its hydraulic stabilizer legs that move independently of each other.
Images of Different Uses
With Regular Work Bucket
With Bale Holder / With Square Bale Fork
With Backhoe
With Snow Shovel and Backhoe
